Three-Dimensional Composite Drainage Net - High-Efficiency Drainage with Excellent Chemical and UV Resistance

90 m2
MOQ
0.96USD~3.44USD per sqm
prezzo
Three-Dimensional Composite Drainage Net - High-Efficiency Drainage with Excellent Chemical and UV Resistance
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Colore: Nero
Resistenza chimica: Eccellente
Larghezza: 2m-6m
Resistenza ai raggi UV: Eccellente
Lunghezza: 50-100 metri
Resistenza alla trazione: ≥16kN/m
Peso: ≥ 200 g/m2
Applicazione: Discarica, letto stradale, ferrovia, galleria, muro di sostegno
Evidenziare:

High-Efficiency Drainage Net

,

Chemical Resistant Drainage Geonet

,

UV Resistant Composite Drainage Network
Informazioni di base
Luogo di origine: Cina
Marca: JianYi
Certificazione: ISO 9001 CE
Numero di modello: 4mm-8mm
Termini di pagamento e spedizione
Tempi di consegna: 7-15 giorni
Termini di pagamento: L/c, d/p
Capacità di alimentazione: 600t/month
Descrizione di prodotto
Three-Dimensional Composite Drainage Net - High-Efficiency Drainage and Filtration Material
Product Introduction

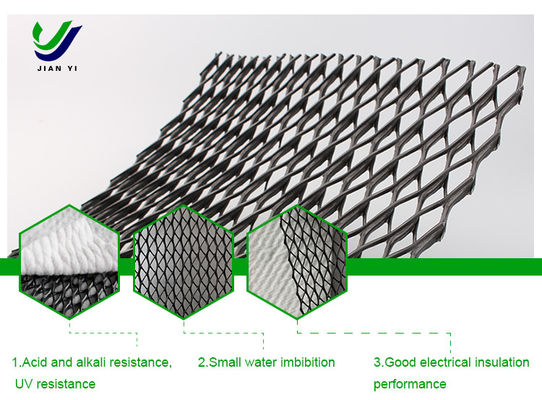

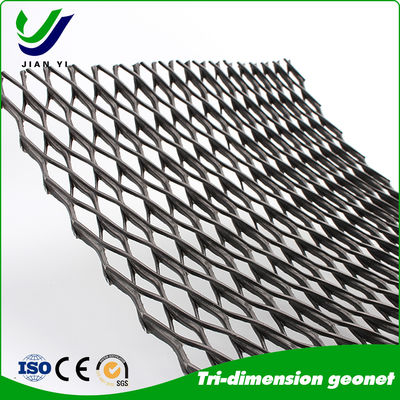

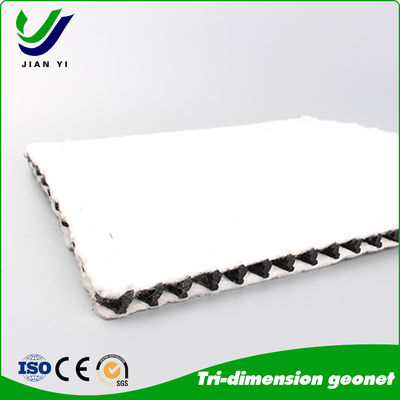

Our Three-Dimensional Composite Drainage Net combines a three-dimensional plastic mesh core with two layers of non-woven geotextile. The mesh core features a high void ratio that creates efficient drainage channels for water, while the geotextile layers provide superior filtration to prevent soil particles from entering and clogging the drainage system. This engineered solution delivers exceptional drainage performance and filtration efficiency, effectively addressing water accumulation issues in various engineering applications.
Product Features
  • High Drainage Efficiency: The three-dimensional mesh core features over 90% void ratio, providing substantial flow capacity with drainage speeds 5-10 times faster than traditional materials.
  • Superior Filtration Performance: Non-woven geotextile with optimized pore size effectively filters soil particles, prevents drainage channel blockage, and ensures long-term stable performance.
  • Exceptional Compressive Strength: The stable three-dimensional structure maintains optimal drainage performance even under high pressure conditions.
  • Corrosion and UV Resistance: Manufactured from high-quality HDPE material, resistant to chemical corrosion and ultraviolet radiation for extended service life.
Application Fields
  • Landfill leachate drainage systems
  • Highway and railway subgrade drainage
  • Slope and embankment drainage
  • Basement exterior wall drainage
  • Sports field and recreational area drainage
  • Soft soil foundation treatment
  • Coastal reclamation and marine projects
  • Other applications requiring efficient drainage solutions
Product Installation Guidelines
  1. Base Surface Preparation: Ensure the base surface is flat, clean, and free of sharp objects. Level uneven areas and compact the surface to prevent damage to the drainage net.
  2. Unfolding and Laying: Position the drainage net with the geotextile layer facing the soil. Lay from lower to upper sections along slopes, and from upstream to downstream for horizontal installation. Maintain 15-20cm overlap between adjacent nets.
  3. Fixing and Connection: Secure the drainage net to the base surface using fixing nails at 1-1.5m intervals. Connect overlap areas with staples or adhesive to ensure tight, leak-proof joints.
  4. Backfilling: After installation, promptly backfill with fine soil or sand. Compact in layers and avoid direct heavy machinery traffic on the drainage net.
Prodotto Tag:

Geonet di drenaggio dei pavimenti

6.3mm Geonet di drenaggio

Rete di drenaggio geosintetico composito
