Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical and UV Resistance

90 m2
MOQ
0.96USD~3.44USD per sqm
prezzo
Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical and UV Resistance
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Colore: Nero
Resistenza chimica: Eccellente
Larghezza: 2m-6m
Resistenza ai raggi UV: Eccellente
Lunghezza: 50-100 metri
Resistenza alla trazione: ≥16kN/m
Peso: ≥ 200 g/m2
Applicazione: Discarica, letto stradale, ferrovia, galleria, muro di sostegno
Evidenziare:

Lightweight and Thin Drainage Geonet

,

Excellent Chemical Resistance Composite Drainage Geonet

,

Excellent UV Resistance Three-Dimensional Composite Drainage Net
Informazioni di base
Luogo di origine: Cina
Marca: JianYi
Certificazione: ISO 9001 CE
Numero di modello: 4mm-8mm
Termini di pagamento e spedizione
Tempi di consegna: 7-15 giorni
Termini di pagamento: L/c, d/p
Capacità di alimentazione: 600t/month
Descrizione di prodotto

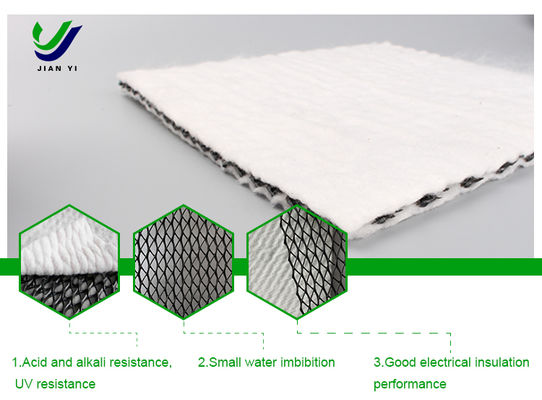

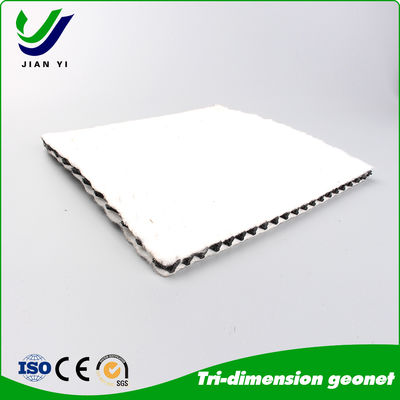

Three-Dimensional Composite Drainage Net
Lightweight and thin drainage material engineered for space-constrained applications
Product Overview
This innovative three-dimensional composite drainage net features a thin, high-strength mesh core combined with lightweight non-woven geotextile. With a minimal thickness of 3-5mm and weight under 200g/m², this solution optimizes construction space while reducing transportation and installation costs.
Key Specifications:
• Thickness: 3-5mm
• Weight: ≤ 200g/m²
• Excellent drainage performance in compact spaces
Product Features
  • Lightweight & Compact: Minimal thickness and weight ideal for narrow spaces and limited load capacity areas
  • Superior Flexibility: Easily folds and bends for installation on curved surfaces and irregular shapes
  • Efficient Drainage: High void ratio mesh core ensures optimal water flow for standard drainage requirements
  • Easy Installation: Cut to any size with standard scissors - no specialized tools required
Application Areas
Ideal for various drainage applications including:
  • Indoor floor and wall drainage systems
  • Roof drainage solutions
  • Small-scale garden and landscape drainage
  • Retrofit drainage for existing building renovations
Particularly suitable for projects with limited construction space and lower load requirements.
Installation Guidelines
  1. Surface Preparation: Thoroughly clean the base surface, removing all dust, debris, and oil stains. Ensure surface is flat and dry.
  2. Cutting & Placement: Cut drainage net to required dimensions. Lay on prepared surface with 10cm overlap between adjacent sections. Secure overlap areas manually.
  3. Secure Installation: Use eco-friendly adhesive for indoor applications; small plastic nails for outdoor projects (spacing: 20-25cm).
  4. Finishing: Cover with fine soil or decorative materials. For indoor use, directly apply floor tiles or other finishing materials over the surface.
